Exporting 3D models as GLTF files

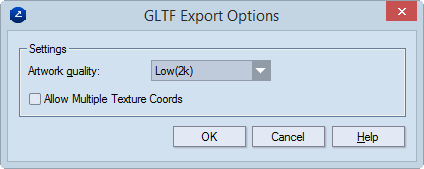

Settings Settings about the color and the image that will make up the file's background.

Artwork quality Sets the level of quality for the image in the exported file: Low (1K), Medium (2K) or High (4K).

Allow multiple texture coordinates Controls how EngView will distribute textures across surfaces of the 3D model — with multiple coordinates or without them. The decision involves trade-offs and largely depends on the viewer that will be used for opening the exported file. Consider the following:

• Selecting the check box. The model is exported with (1) higher texture quality, (2) viewable finishing effects (emboss, deboss) and (3) in smaller file size. 3D viewers that reproduce the 3D model well in this mode of export are, for example, Play Canvas glTF viewer and Blender.
• Leaving the check box empty. The model is exported with lower texture quality but with viewable finishing effects (emboss, deboss). A downside here is that the file size is larger. 3D viewers that reproduce the 3D model well in this mode of export are, for example, glTF Viewer and Creators 3D.
