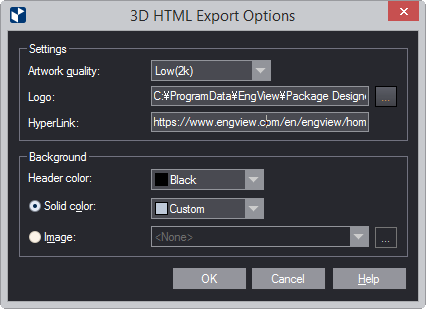

| Settings | Settings about the color and the image that will make up the file's background |
|---|---|
| Artwork quality | Set the quality in which you want EngView
to export the textures on the 3D model.
TIP: You can set a quality size of up to 16k, but before setting a size, make sure that the video adapter that will be displaying the exported file supports this quality size. |
| Logo | (Optional) Loads an image that will serve as a logo in the exported file. |
| Hyperlink | (Optional) Type the full URL (including the protocol part: http:\\; https:\\; ftp:\\ or other) of a website that you want to associate with the logo. When in the exported fil, you click the logo, your default web browser will open the website. |
| Background | Settings about the color and the image that will make up the file's background. |
| Header color | Sets the color for the horizontal banner above the view area. This banner contains the logo and instruments controlling the 3D model's navigation and visualization. |
| Solid color | Sets the color on which the 3D model will appear in the exported file. |
| Image | Sets an image for the background on which the 3D model will appear in the exported file. Use the browse button to navigate to a location from where you will load an image. |
