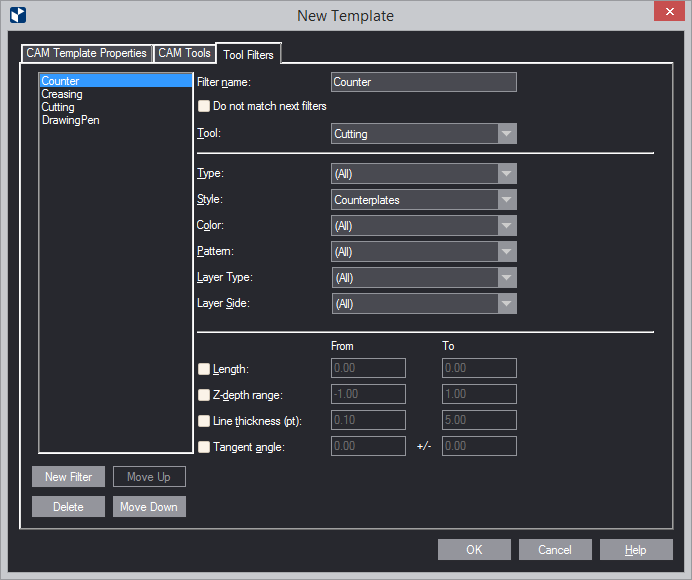

| Filter name | Sets the name of the tool filter. |
|---|---|
| Do not match next filters | Stops searching through the settings of other filters after a match case has been found. |
| Tool | Sets the CAM tool with which the tool filter will associate all the objects with the attributes set for the filter. This list contains all the CAM tools available in the currently loaded template. |
| Type | Sets the type of tool-filtered objects — point, line, arc, Bézier curve: all objects of the specified type (together with all other attributes) will be associated with the selected CAM tool. |
| Style | Sets the style of tool-filtered objects: all objects with the specified style (together with all other attributes) will be associated with the selected CAM tool. |
| Color | Sets the color of tool-filtered objects: all objects with the specified color (together with all other attributes) will be associated with the selected CAM tool. |
| Pattern | Sets the pattern of the constructional lines or curves of tool-filtered objects: all objects with the specified pattern (together with all other attributes) will be associated with the selected CAM tool. |
| Layer Type | Select the type of layer to which you want to apply the filter. |
| Layer Side | Select on which side (front, rear) of the layer you want to apply the filter. |
| Length | Sets the length range of the constructional lines or curves of tool-filtered objects: all objects that are in the specified length range (together with all other attributes) will be associated with the selected CAM tool. |
| Z-depth | Sets the stack order of a style. Value range: [–1 to 1]. If multiple objects in different styles overlap, the object in the style with the greatest stack order is visible on the screen and the others are not visible regardless of when each object was drawn. Example: If the Cutting style has a stack order of 0.5 and the Axis style has a stack order of -0.4, when objects in the two styles overlap, the one in the Cutting style will always be visible and that in the Axis style will always be not visible. |
| Line width (pt) | Sets the line width range of the constructional lines or curves of tool-filtered objects: all objects that fall into the specified line width range (together with all other attributes) will be associated with the selected CAM tool selected. |
| Tangent Angle | Sets the tangent angle range of the constructional curves of tool-filtered objects: all objects that fall into the specified line width range (together with all other attributes) will be associated with the selected CAM tool. |
| New Filter | Opens a dialog box in which you can create a new filter. |
| Delete | Deletes the selected filter. |
| Move Up | Moves the selected filter up the list. |
| Move Down | Moves the selected filter down the list. |
