| To extract | In | Use |
|---|---|---|
| Parameter value |
1up | OneUpN.Cost.Parameter |
| Layout | LayoutN.Cost.Parameter | |
| Parameter description |
1up | OneUpN.Cost.Parameter.Descr |
| Layout | LayoutN.Cost.Parameter.Descr |
| To print | Parameter | Extracted From | Currency | Use | Example |
|---|---|---|---|---|---|
| Value | TotalCost | Layout1 | U.S. dollars | $$$Layout1.Cost.TotalCost; n0t$ | $1,050* |
| TotalCost | OneUp1 | Euros | $OneUp1.Cost.TotalCost; n2$ EUR | 135.50 EUR | |
| TotalRules | Layout1 | $Layout1.Cost.TotalRules; n2$ EUR | 334.50 EUR | ||
| Description | TotalRules | OneUp1 | n/a | $OneUp1.Cost.TotalRules.Descr$ | Total length of rules in meters |
| TotalRules | Layout1 | $Layout1.Cost.TotalRules.Descr$ |
| With Semicolon | With Comma |
|---|---|
| $Layout1.Length(Cutting; m; yes); n2$ | $Layout1.Length(Cutting, m, yes), n2$ |

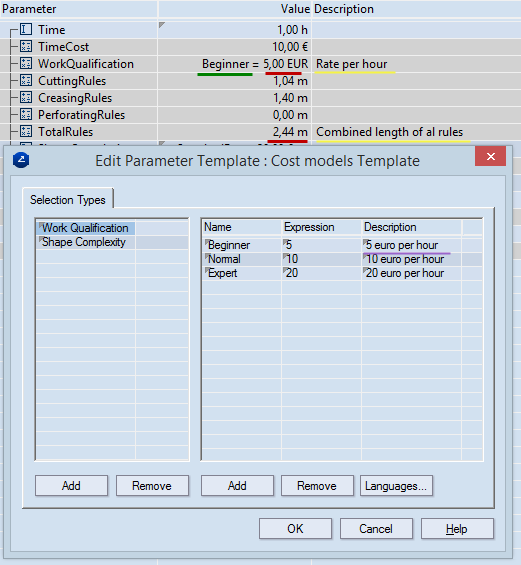

A selection parameter consists of multiple values, called selection type entries, combined in a holding entity called selection type. When you use a selection parameter, you choose an entry from the selection type, and this entry then becomes the actual value that the cost model will use for calculations. That is why, when working with selection parameters, there are a four properties that you can extract. See the two tables and the picture that follow to learn which they are and how you can extract them.
| Color | Indicates | Formula that extracts it |
|---|---|---|
| Yellow | Description of the selection parameter | OneUp1.Cost.ParameterName.Descr |
| Green | Name of the applied selection type entry | #OneUp1.Cost.ParameterName |
| OneUp1.Cost.ParameterName.Expr | ||
| Red | Expression value of the applied selection type entry | OneUp1.Cost.ParameterName |
| Light Purple | Description of the applied selection type entry | OneUp1.Cost.ParameterName.ValDescr |
| to print | drawing | formula to use | example |
|---|---|---|---|
| Description of the WorkQualification parameter | 1up | $OneUp1.Cost.WorkQualification.Descr$ | Rate per hour |
| Layout | $Layout1.Cost.WorkQualification.Descr$ | ||
| The name of the applied selection type entry for the WorkQualification parameter | 1up | $#OneUp1.Cost.WorkQualification$ | Beginner |
| $OneUp1.Cost.WorkQualification.Expr$ | |||
| Layout | $#Layout1.Cost.WorkQualification$ | ||
| $Layout1.Cost.WorkQualification.Expr$ | |||
| The expression value of the applied selection type entry for the WorkQualification parameter | 1up | $OneUp1.Cost.WorkQualification; n2$ EUR | 5.00 EUR |
| Layout | $Layout1.Cost.WorkQualification; n2$ EUR | ||
| The description of the applied selection type entry for the WorkQualification parameter | 1up | $OneUp1.Cost.WorkQualification.ValDescr$ | 5 euro per hour |
| Layout | $Layout1.Cost.WorkQualification.ValDescr$ |
