Selecting by applying object filters

You can make selections by applying objects filters. You do so by setting additional filtering by attributes such as type, style, color, pattern, length and line width. You can then save the attributes you have set as a filter, and use it the next time you want to perform the same selection.

You can use object filters as you press CTRL+A or by defining selection areas usng the mouse.

To create a local filter

1. Do any of the following:

• Click Select .
• On the Edit menu, click Select.

A contextual edit bar appears above the graphical area.

2. Click Object Filters .

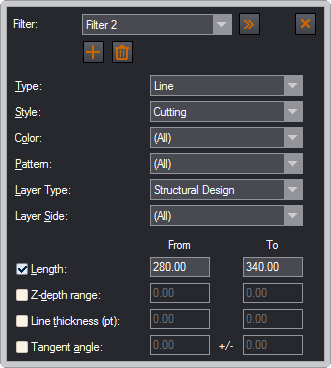

A floating dialog box appears.

In 1up drawing

In bridges drawings

3. Begin setting the attributes by which you want to make a selection:

Bridges / Width (bridges drawings only) Select the check box to have the program select bridges. To set specific width values for the selected bridges, select the Width check box, and in From and To type the lower and upper values for the bridges you want selected.

Nicks / Width (bridges drawings only) Select the check box to have the program select nicks. To set specific width values for the selected nicks, select the Width check box, and in From and To type the lower and upper values for the nicks you want selected.

Type Select the type of object that you want to select. NOTE: You can select either one type of object or all types of objects.

Style Select the style in which the objects needs to be. NOTE: If you set a parent style, the objects in that style and the objects in any of its child styles will be selected. If you set a child style, only the objects in the child style will be selected. NOTE: You can select either one style or all styles.

Color Select a color in which the objects need to be. NOTE: You can select either one color or all colors.

Pattern (1up drawings only) Select the pattern that the style has. NOTE: You can select either one pattern or all patterns.

Layer Type (1up drawings only) Select the type of the layer to which you want the selection to be applied: Structural Design, Varnishing, Auxiliary and so on. NOTE: You can select either one or all layer types.

Layer Side (1up drawings only) Select on which side of a layer you want the selection to be applied: front or rear.

For the next four properties, the values in From and To define ranges. The objects that fall in these ranges will be selected when the preset is applied.

Length Define the length that EngView will use to select objects.

Viewing depth (1up drawings only) Sets the stack order of a style. Value range: [–1 to 1]. If multiple objects in different styles overlap, the object in the style with the greatest stack order is visible on the screen and the others are not visible regardless of when each object was drawn. Example: If the Cutting style has a stack order of 0.5 and the Axis style has a stack order of -0.4, when objects in the two styles overlap, the one in the Cutting style will always be visible and that in the Axis style will always be not visible.

This applies also to selections: For overlapping objects, the object in a style with a greater stack order is always visible even if the object in a style with a lower stack order is selected. If objects in styles with the same stack order overlap, you will see the one that is selected.

Line width (pt) Define a width range (in points) that EngView will use to select objects.

Tangent angle Define an angle range for EngView to use for filtering objects.

4. After you have set the attributes, with the dialog box still floating, use the mouse to form the selection area. Note that EngView selects only the objects that match the attributes you have set.
5. (Optional) To save the selection preset, click the Plus button .

A dialog box appears.

6. Type the name of your preset, and then click OK.

NOTE: This filter is automatically added also to the global filter list as a local filter (marked by Local in its Type). If you want to use it for extracting information in design frame formulas or in cost model formulas, go to the list and make the filter's type Shared (double-click its Type box).

EngView selects only the objects that correspond to the attributes set in the preset.

To delete a local filter

• To delete a filter, select it in the drop-down list, and then click the Bin button .

NOTE: If the Bin button is unavailable, this means that the filter you are trying to delete is of the Shared type. You can delete Shared type filters only in the global list of object filters. Be extra careful when deleting Shared type filters, as they may be used in design frame or cost models formulas that you use.
