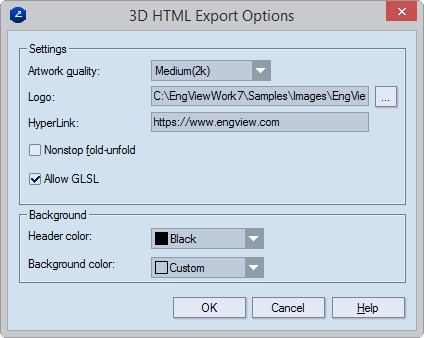

Settings Settings about the color and the image that will make up the file's background
Artwork quality Sets the level of quality for the image in the PDF file. TIP: You can set a quality size of up to 16k, but before setting a size, make sure that the monitor that will be used for viewing the exported file is capable of displaying this quality size.
Logo (Optional) Loads an image to serve as a logo in the exported file.
Hyperlink (Optional) Type the full URL (including the protocol part: http:\\; https:\\; ftp:\\ or other) of a website that you want to associate with the logo. When, in the exported file, you click the logo, your default browser will open the website.
Nonstop fold-unfold Makes the 3D drawing fold and unfold without stopping. NOTE: This functionality applies to the phases set in From and To in the Export dialog box.
Allow GLSL Select this check box to include shader-dependent effects in the exported file. These effects include smooth edges along crease lines, imprint effects (embossing and debossing) and varnished surfaces.
IMPORTANT: Leaving the check box empty will not make crease line visible in the exported file.
Background Settings about the color and the image that will make up the file's background.
Header color Sets a color for the horizontal band above the view area. This band contains the logo and instruments controlling the 3D model's navigation and visualization.
Background color Sets a color for the background on which the 3D model will appear in the exported file.
