Adding on relations

1. Select the objects to which you want to set relations.

NOTE: Unless you make a selection, the entire design will be checked, and relations will be set to it.

2. Do any of the following:

• On the Transformation toolbar, click Add on relations .
• On the Transformations menu, click Add on relations.

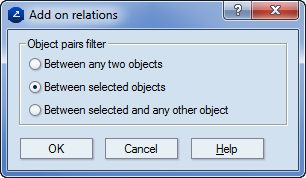

The Add on relations dialog box appears.

3. Click the option that you want:

• To check the entire design for adjoining objects and set on relations between them, click Between any two objects.
• To set on relations where the selected objects adjoin, click Between selected objects.
• To set on relations between the selected objects and all objects that adjoin them, click Between selected and any other object.

Notes

• Unless you have selected any objects, only the Between any two objects option is available.
• An alternative method of adding on relations is to rest the mouse pointer on the point where you want to set an on relation, right-click, and then click Add On Relation on the context menu.
