Formulas extracting data form manufacturing joints: code, description, type, bundle height factor

You can use formulas to extract the following properties of manufacturing joints:

Extracting information about code, type and description

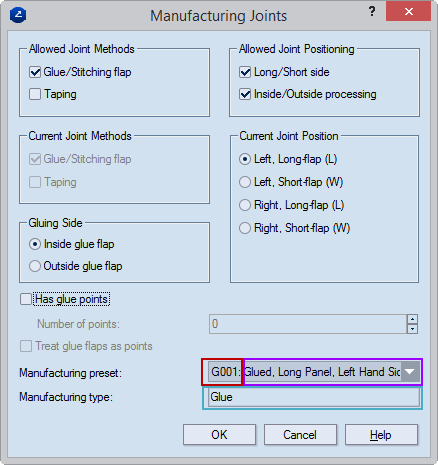

In the picture and table below, use the color-coded indications to orient yourself about which formula relates to which property.

To print	Use	Example
Preset code	$OneUp1.mfjcode()$	G001
Preset description	$OneUp1.mfjdescr()$	Glued; Long Panel; Left Hand Side
Manufacturing type	$OneUp1.mfjtype()$	Glue

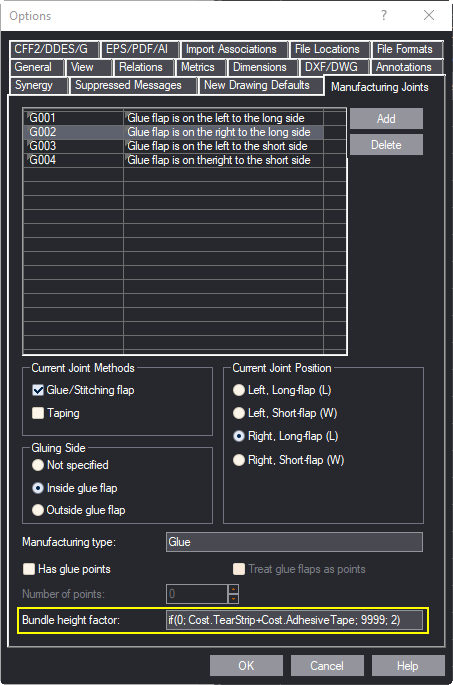

You can set the bundle factor as a global property.

To print	Use	Example
Bundle height factor expression	$OneUp1.mfjbundleheightexpr()$	if(0; Cost.TearStrip+Cost.AdhesiveTape; 9999; 2)
Bundle height factor value	$OneUp1.calcexpr(mfjbundleheightexpr(); no)$	2.00
