About print mark standards

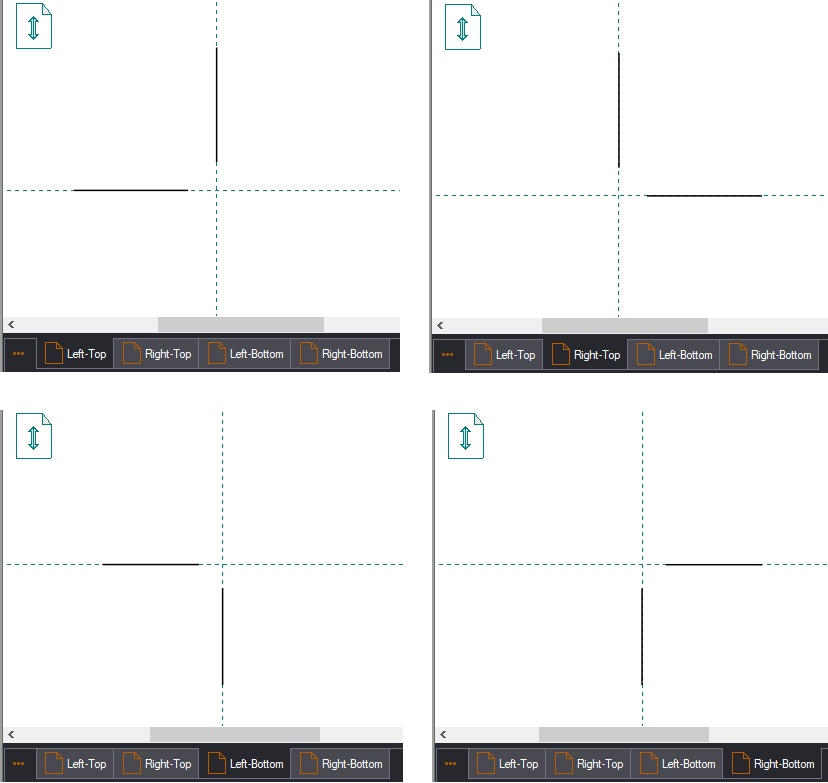

Print mark standards are .evd files that contain drawings of each print mark that you want to position. The following picture displays the Crop Marks standard, which comes automatically with your installation. The standard contains four print marks, each of them in its own drawing — Left-Top, Right-Top, Left-Bottom, and Right-Bottom.

An EngView installation comes with seven predefined print mark standards:

Center Marks, which places four print marks, in the midpoints on the four sides of the drawing's bounding rectangle (cutting box).
Crop Marks, which places four print marks, at the corners of the cutting box.
Japanese Marks, which places nine print marks along the cutting box: four at the corners; four at the midpoints; and at the point of intersections of the cutting box's diagonals.
Registration Marks, which places four 6-mm-wide circles, whose centers are offset at 8 mm from the cutting box.
Sheet Gripper Marks, consisting of two print marks for the gripper in the lower part of the placed sheet.
Sheet Margins Center Marks, consisting of eight print marks positioned along the corners and centers of the sides of the placed sheet, accounting for the margins.
Sheet Margins Corner Marks, consisting of four print marks positioned at the corners of the placed sheet, accounting for the margins.

Drawing print marks

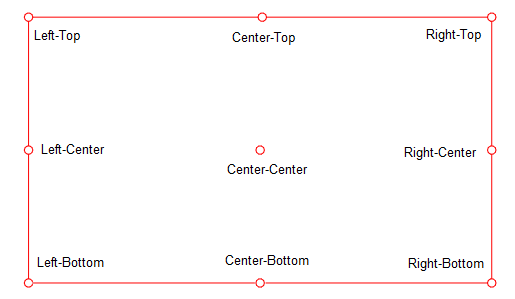

Print marks can be placed at nine positions along a bounding rectangle — on the cutting box, the sheet or the dieboard:

You draw each individual print mark in a separate drawing. That is why each print mark standard can have up to nine drawings.

To create a print mark standard

Begin creating a blank drawing.
Create as many drawings as you will need later when you will be applying the standard.

NOTE: You do not need to create drawings for all nine print mark positions.

IMPORTANT: Name the print mark drawings exactly as shown in the above picture. This guarantees that the program will recognize the drawings and will position them at the right place along the bounding rectangle.

Point of positioning. The coordinate system

When you are drawing the print mark, keep in mind the center of the coordinate system. When applying the mark, the program attaches it by using the origin of the mark's drawing's coordinate system. If for some reason you do not want the print mark to begin at the point of attachment, you can leave an empty space between the origin of the coordinate system and the beginning of the print mark. This is especially useful when the drawing uses bleed. Since bleed is not part of the bounding rectangle and spills over the area of the 1up, it makes sense to position the print mark outside the bleed area.

Consider the four drawings of the Crop Marks.evd print mark standard.

Drawing the print marks

You can draw the print marks:

In free hand – as simple objects.
Using a component with parameters. Using components with parameters helps the future editing of the print marks — you simply edit the parameters rather than re-draw a mark.

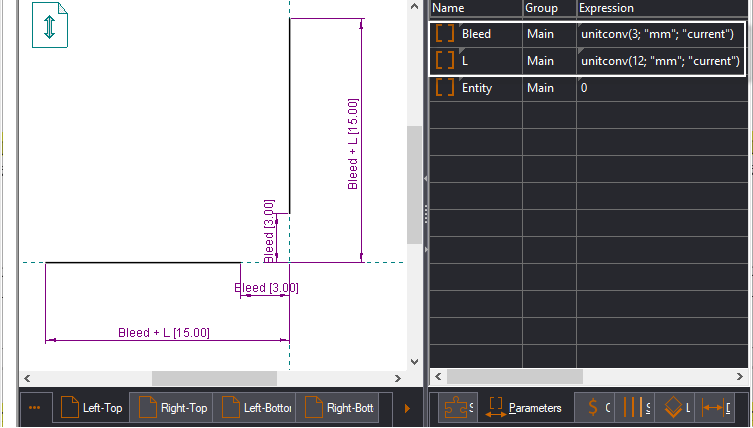

IMPORTANT: All EngView-distributed standards are parameterized — that is, resizable components were used as basis for them (pictured in the left drawing), whose sizes are controlled by parameters (pictured in the right drawing). Note how two parameters are used to control the distances of the bleed (Bleed) and the print mark's length (L).

Setting the Entity parameter

You must set the Entity parameter, which defines the bounding rectangle along which the print mark will be positioned. There are three options for positioning print marks:

On the cutting box (A)
On the sheet's rectangle (B)
On the dieboard's rectangle (C)

The following table lists the values that the Entity parameter can have depending on the rectangle you want the print mark placed on:

Values of the Entity parameter

print mark lies on	value of entity parameter	The mark lies on
CUTTING BOX	0	ON THE CUTTING BOX'S OUTER SIDE
SHEET INNER RECTANGLE	1	ON THE MARGINS' OUTER SIDE
SHEET OUTER RECTANGLE	2	OUTSIDE THE SHEET
DIEBOARD INNER RECTANGLE	3	INSIDE THE DIEBOARD
DIEBOARD OUTER RECTANGLE	4	OUTSIDE THE DIEBOARD

IMPORTANT: If you do not set an Entity parameter for a drawing, the respective print mark will not appear when you start applying the standard. The reason is that the program will not be able to place the print mark on a particular rectangle. The same applies if you have set a print mark to be attached to a sheet or dieboard edges, but there is no sheet or dieboard positioned in the drawing — in this case, the print marks set for the sheet and dieboard bounding rectangles will not appear on the screen.

Using the Entity parameter across a standard

Entity as local parameter

When you create the Entity parameter, it is a local, set for each drawing in the standard file. This means that you can set — for example, the Left-Top print mark at the dieboard's inner rectangle and the Center-Top print mark at the sheet's outer rectangle.

Entity as global parameter

If you want to set all the print mark drawings in the standard file with identical alignment, set the Entity parameter for one of the drawings, and then make it global. This guarantees that all the print marks are positioned as per the value of the Entity parameter.

Placing the print marks into a dedicated layer

Assigning print marks to their own layer is not obligatory but is highly useful in pre-production-related tasks. For example, when working with the integration with Illustrator, you may need to hide the print marks to prevent them from appearing on the final product. When they are placed in a separate layer, switching them off is easy in Illustrator's Layers panel.

You can place print marks into a separate layer while creating a standard or while creating a template.

To place print marks to a separate layer

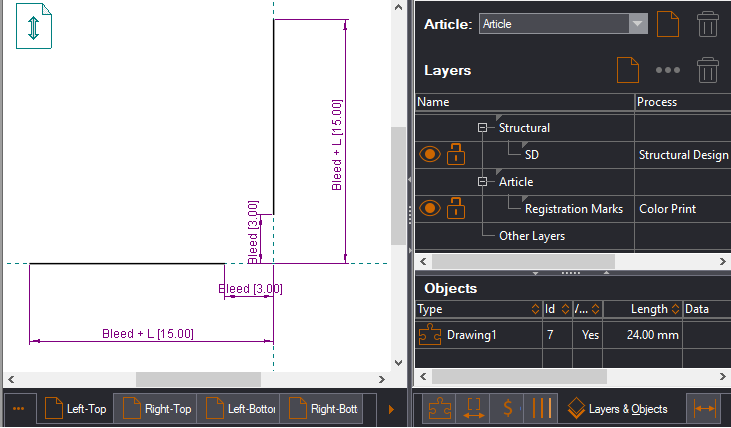

In the tabular area, create the layer to which you will assign the print marks. For example, the EngView-distributed print marks are assigned the Registration Marks layer (Color Print).
Select the print marks, and then assign them to the newly created layer.

Saving print mark standards

IMPORTANT: When you create a standard, make sure you save it in the Standards subfolder of the dedicated folder (C:\EngViewWork7\Settings\Print Marks\Standards). This guarantees that EngView will access it when you begin applying the standard onto a 1up of layout drawings.
